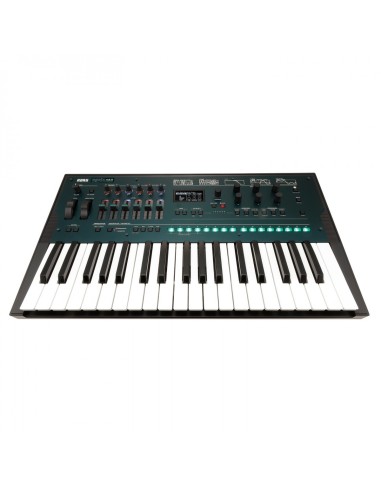

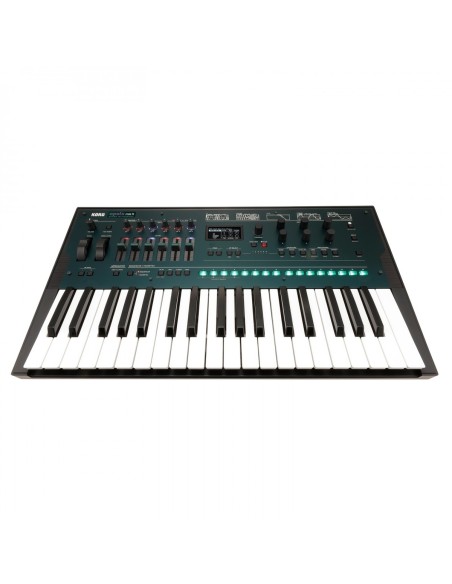

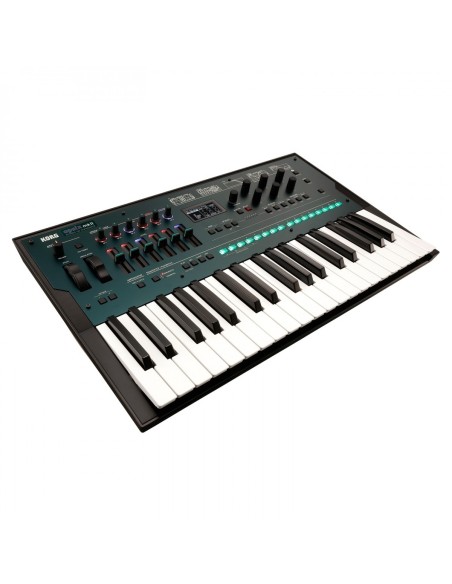

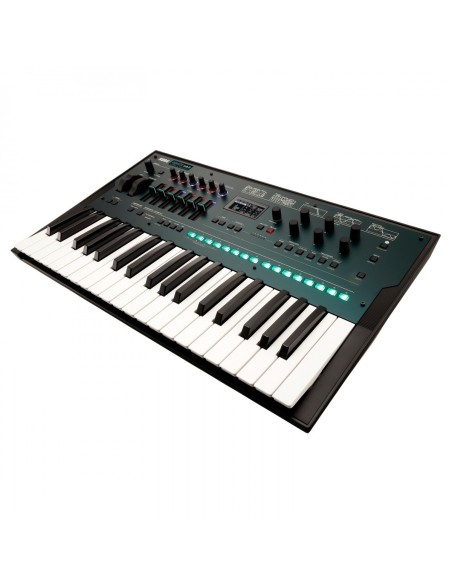

Korg Opsix MKII (B-Stock)

Altered FM synthesizer with optimised workflow

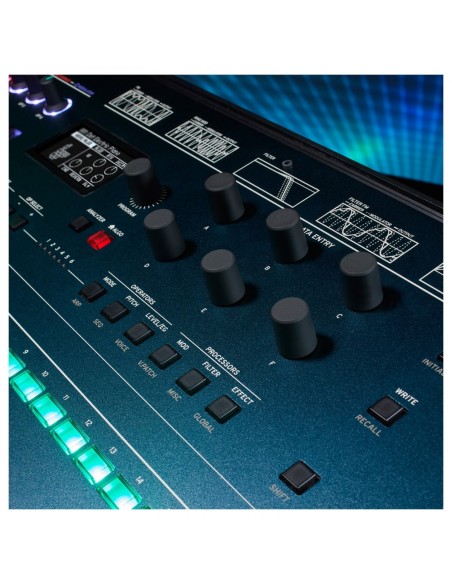

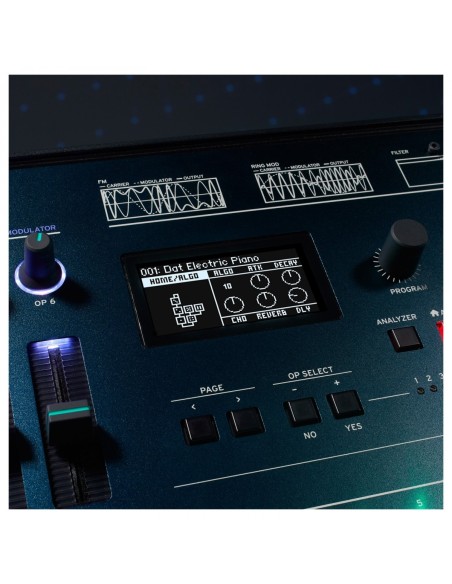

The Opsix MKII is designed to streamline your workflow and make sound creation a breeze. Its data entry knobs provide quick access to essential parameters, whether you're tweaking a preset or building a patch from scratch. The large OLED display offers a clear overview of your workflow, ensuring a seamless and efficient music-making process. With Opsix, you can create new sounds with ease and have fun exploring different sonic landscapes.

Analog-style filters with classic-style design

Opsix features a full range of analogue-style filters, including the iconic Korg MS-20 low-pass/high-pass filter and the powerful Korg PolySix low-pass filter. These filters, combined with two- or four-pole options for low-pass, high-pass, band-pass, and band-reject, offer unparalleled shaping possibilities for your sounds. Additionally, Opsix comes equipped with a spectrum analyzer and oscilloscope built-in, providing you with visual feedback and insight into the music you're creating.

Versatile sound shaping controls

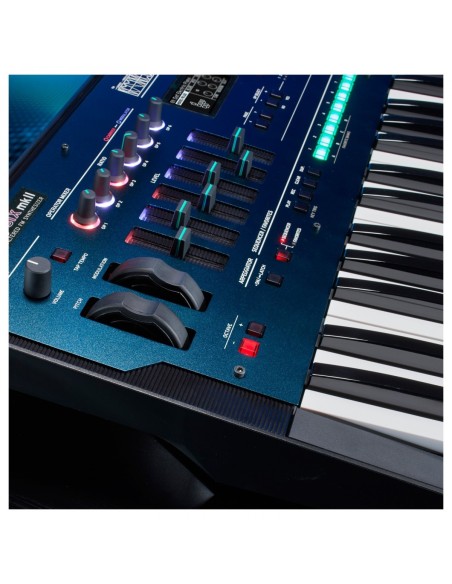

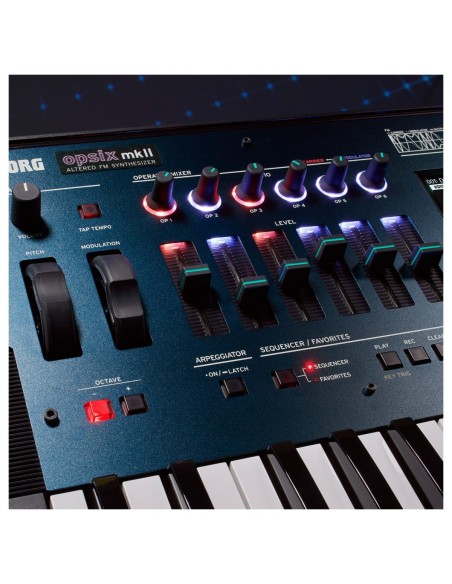

At the heart of Opsix MKII lies the Operator Mixer, a set of six faders and knobs that invite exploration. Each of the six parts lights up to indicate whether it's generating a sound or modulating the sound. By adjusting the position of these controllers, you unlock a world of sound-shaping possibilities, breathing fresh life into your musical ideas. Opsix's unique hands-on workflow empowers you to push the boundaries of your creativity.

Step sequencer and studio-grade effects

With thirty high-definition effects at your disposal, Opsix enables you to elevate your sound to new heights. From chorus and phaser to delay and compressor, alongside world-class shimmering reverbs, these effects add depth and character to your compositions. Whether you're looking to add a subtle touch or create a striking sonic landscape, Opsix has you covered.

Opsix MKII features an incredible step sequencer that opens up a world of possibilities for creating captivating sequences. Record your own sequences or simply press play for each sound to explore the depth of sequence possibilities. With the ability to record up to six notes per step, along with control over velocity, gate time, and playback timing, you can create intricate phrases and subtle timing variations that bring your music to life. The motion sequencer allows you to record changes in up to six parameters, enabling you to build evolving rhythms and intricate patterns.

Endless modulation possibilities

Opsix MKII offers six operator modes and 40 preset algorithms, allowing you to dive deep into modulation possibilities. Create your own algorithms to craft unique sounds or choose from the extensive range of presets. The synthesis is supercharged with processors at the end of the signal chain, featuring three EGs and three LFOs in the MOD section. With 12 virtual patches for versatile routing options, Opsix MKII offers an incredible range of modulation possibilities. Whether you're looking to create swirling soundscapes or add rhythmic motion to your sounds, Opsix has the tools to help you achieve your vision.

Features

Expanded polyphony - utilises up to 64 voices simultaneously

Altered FM synthesis engine with a huge tonal palette, allowing you to create any sound you can dream up

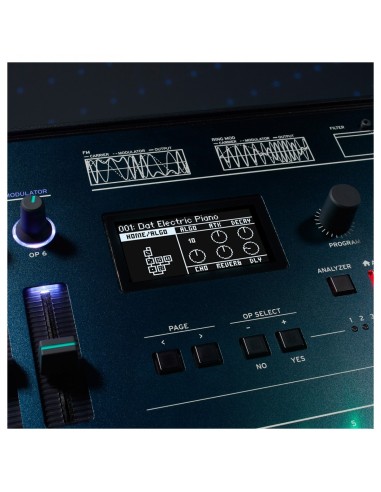

Large OLED display for instant visual feedback

Full-range analog-style filters including Korg's MS-20 LP/HP filters and the PolySix's low-pass filter.

Onboard operator mixer with six faders and knobs for advanced sound shaping

Six-in-one synthesis:

Subtractive

Semi-modular

Analog modelling

Waveshaping

Additive

Classic FM

30 high-definition effects - can be layered to achieve new sounds

Polyphonic motion sequencing

Intuitive modulation matrix with 40 preset algorithms

Randomisation button for generating inspiration

Specifications

Keyboard: 37 keys (velocity and release-velocity sensitive)

Sound Generating System: Altered FM sound generator

Maximum Polyphony: 64 voices (varies depending on the setting)

Structure: 6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator

Algorithm: 40 presets + user algorithm (unique to each program)

Operator: 5 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder)

Oscillator Waveform: 21 waveforms

Filter: 11 types

EG: ADSR

LFO: 23 waveforms

V.Patch: 12 routings

Effect: 30 types

Sequencer: Step Sequencer (up to 16 steps, up to 6 notes per step), Motion Sequencer (up to 6 lanes)

Arpeggiator: 7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER)

Number of Programs: 500 (250 preset programs and 250 user programs as the factory-set default)

Favourite: 64 (16 Slots × 4 Banks)

Controllers: MODULATION wheel, PITCH wheel, RATIO OP 1–6 knobs, LEVEL OP 1–6 sliders, DATA ENTRY A–F knobs

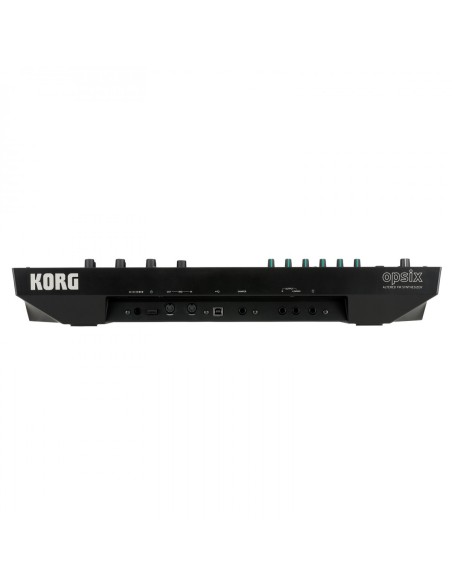

Inputs/Outputs: HEADPHONE (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port

Power Supply: AC adapter (DC12V)

Power Consumption: 5 W

Dimensions (W × D × H): 565 × 338 × 90 mm

Weight: 2.9 kg
