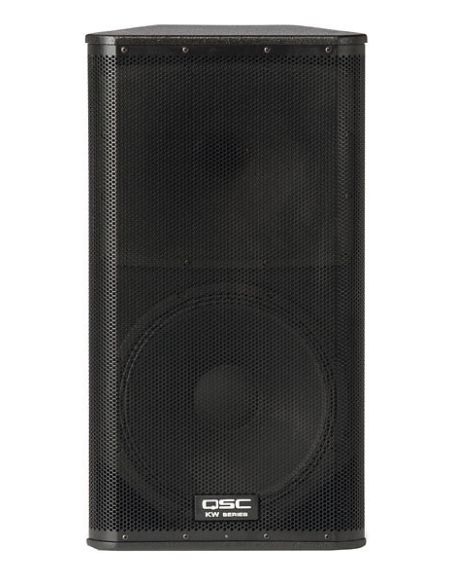

QSC Kw152 : Active PA Speaker 1000W RMS

Trapezoidal 2-way speaker, 38 cm
44 mm diaphragm compression driver

• Frequency response (-6dB): 47Hz–18kHz

• Maximum SPL (at 1 m): 133 dB peak

• Input impedance (Ω): XLR/jack 6.35 mm: 40 k symmetrical / 20 k asymmetrical RCA: 10 k

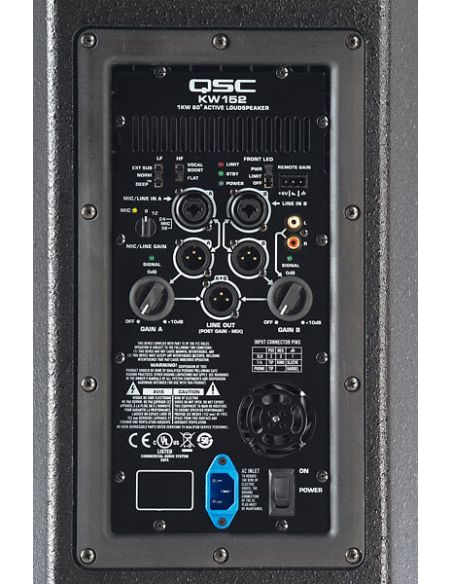

Controls:

• Power

• Gain A

• Gain B

• Channel A input gain (0 dB/12 dB/24 dB/36 dB)

• LF mode (external sub/Norm/DEEPTM)

• HF mode (neutral/vocal boost)

• Front LED (On/Off / Limiter)

Amplifier Protection:

• Thermal limiting

• Output overload

• Cut-off in case of overheating

• GuardRailTM

Amplifiers: Output power: 1000 W, class D (500 W LF, 500 W HF) continuous

K-series performance with a lightweight birch design

1000 watt class D power module in all models (2 x 500 watts)

Full DSP with DEEPTM and Intrinsic CorrectionTM enhances system performance

DMTTM (Directivity Matched Transition) ensures uniform coverage across the sound field

Robust birch cabinets with textured paint

Four mic/line gain settings (wideband models)

1.3 mm steel grilles resistant to touring

Comfortable ergonomic handles

35 mm pole mount with Tilt-DirectTM (KW122, KW152)

M10 rigging points for suspension mounting (wideband models)

• Number of ways: 2

• Application: Conference, mobile DJ, Live, Stage front, Stage monitor

• Speaker: 15"

• Tweeter: 2"

• RMS Power (W): 1000

• Peak Power (W): 2000

• Max Sound Pressure (dB): From 130 to 140

• Built-in Mixer: Yes

• Effects: Audio signal processed by DSP

• Type of amplification: Class D

• Usable on stand / coupling bar: Ø 35 mm, M10 threaded inserts

• Possibility of aerial mounting: Yes

• Frequency response: 48 Hz – 18 kHz

• Packaging: Per unit

• Power supply: AC adapter (included)
