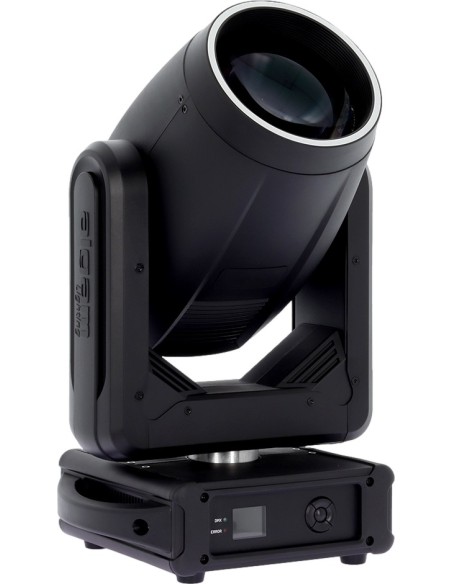

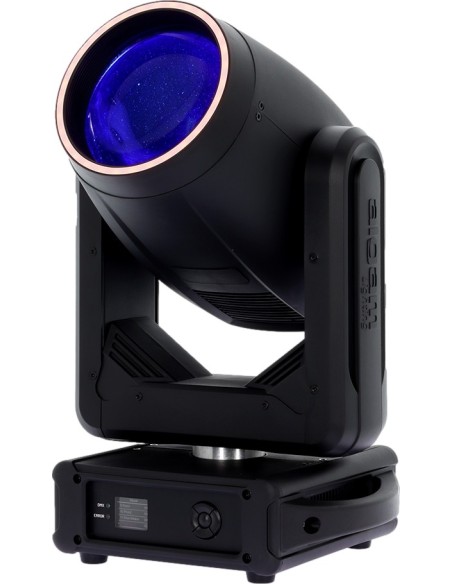

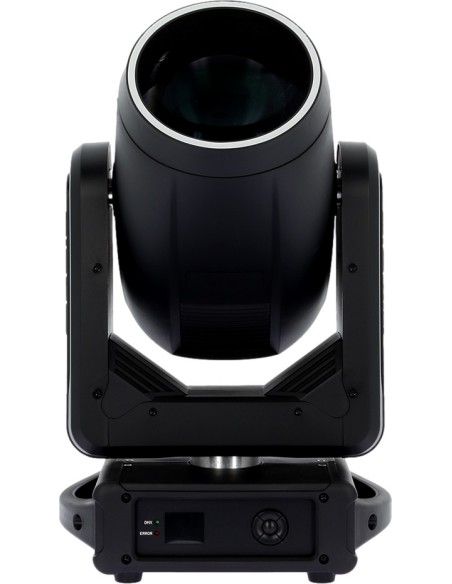

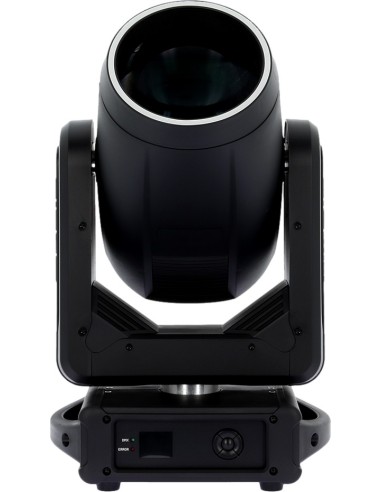

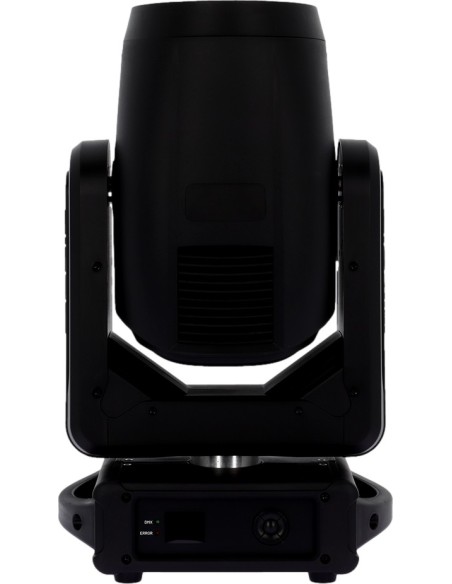

ALGAM LIGHTING - LAP MB200 - Beam Light 200W LED

High-Flying Performance.

The MB200 provides everything you need to create the light show you desire. This versatile fixture features a powerful 200W white LED capable of generating a luminous flux of 42,000 Lux at 5m, ensuring that projections and beams are always visible and impactful. Fully equipped, the MB200 has 2 integrated gobos wheels: one with 9 fixed gobos and the other with 7 rotating gobos for dynamic effects. The gobos wheels are complemented by a wheel with 9 colors + white, a 3-facet rotating prism to duplicate beams, and a frost effect for soft diffusion.

A Professional Design by Algam Lighting.

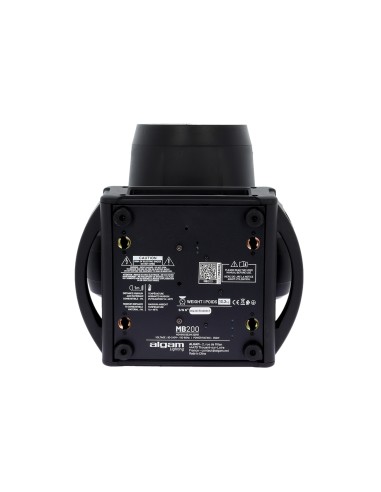

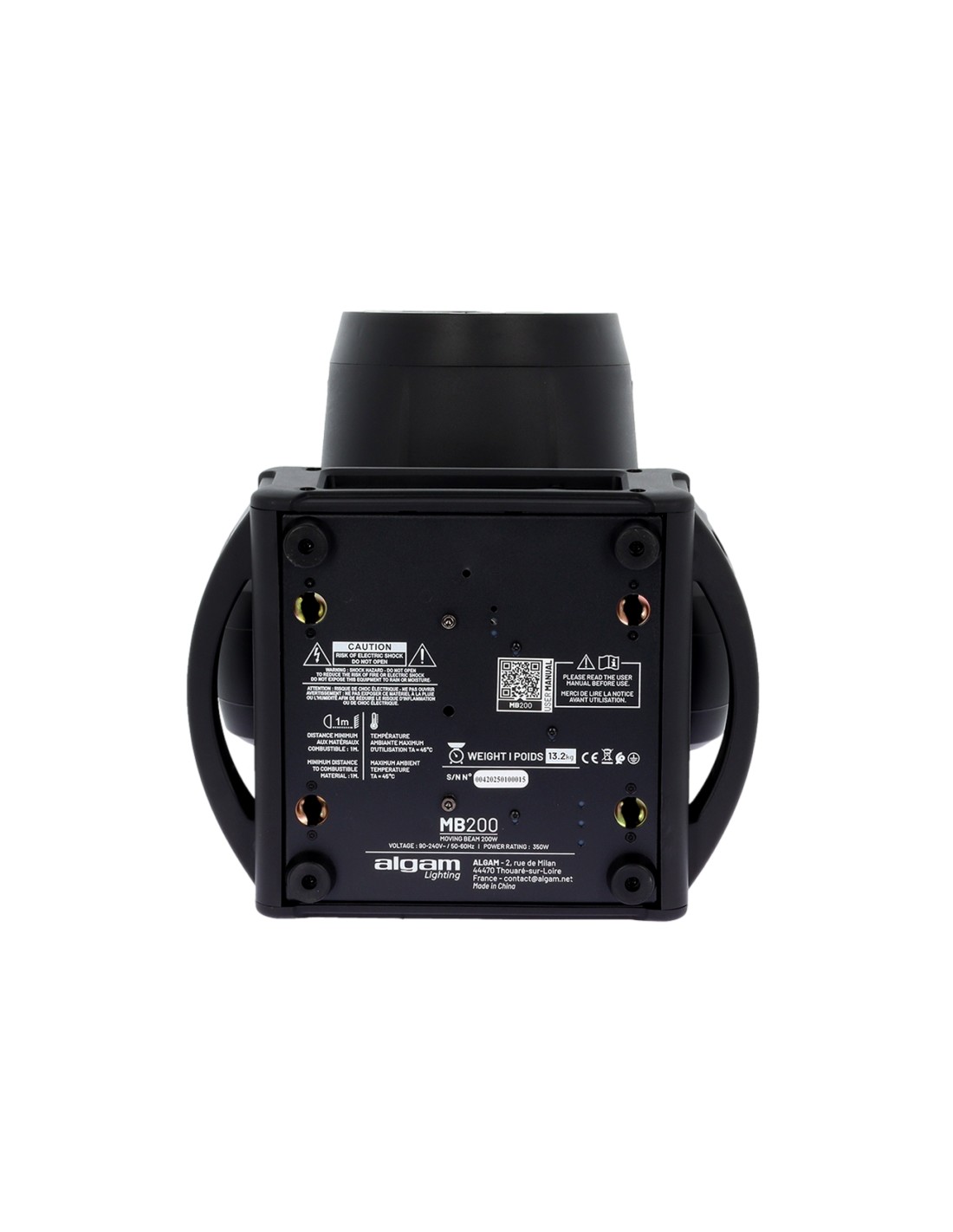

The MB200 features a brand new exclusive chassis designed to ensure robustness, reliability, and impeccable finish. The base is equipped with side handles for easy handling and a secure mounting system with OMEGA for easy installation.

A Professional Interface.

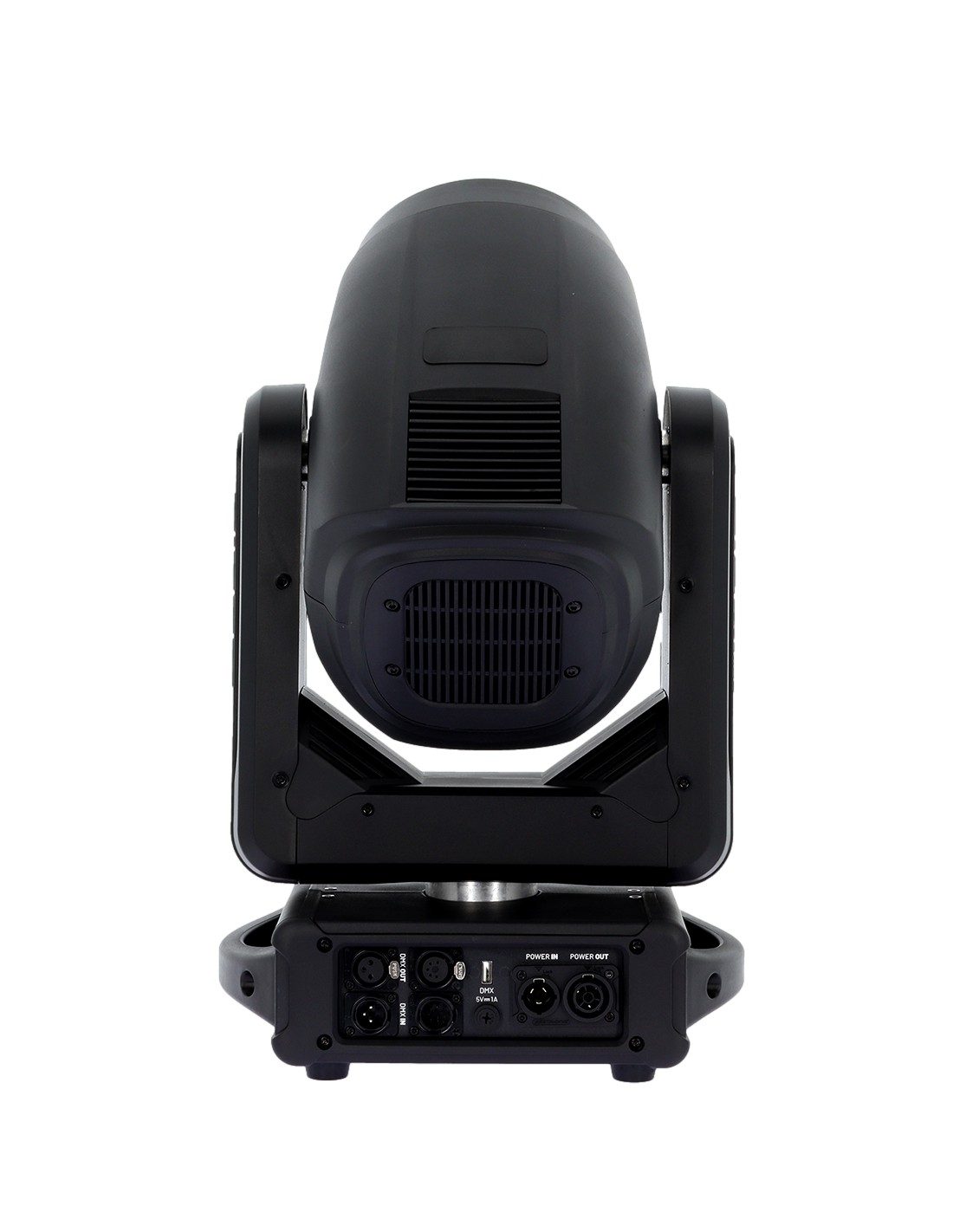

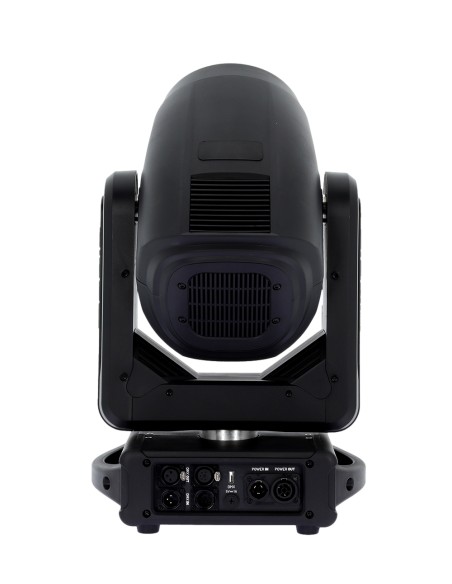

To seamlessly integrate into all configurations, the MB200 features extensive connectivity. You will find 3 and 5-pin DMX input/output, ensuring maximum compatibility with most consoles, whether consumer or professional. Powering is done via PowerCon T1 In/Out connectors, ensuring safety and allowing daisy chaining of multiple fixtures. A dedicated USB port on the back provides a 5V power supply, ideal for connecting a wireless DMX receiver. Control can be accomplished via the control screen and 5 buttons on the front, or via DMX modes with 16 or 20 channels, automatic, musical, master/slave, and RDM compatibility for remote parameter settings.

• RDM Compatibility: Yes

• Color: Black

• Dimmer: Yes

• Focus: Motorized

• CRI: 70

• IP Rating: IP20

• Prism 1: 3 Circular Facets

• Total Source Power: 200 W

• Cooling: Active

• Color Wheel 1: White, Red, Yellow, Blue, Dark Green, Orange, Magenta, Cyan, Light Green, Dark Purple

• Light Source: LED

• Usage Type: Event, Stage

• Fixture Type: Automatic HYBRID

• Zoom: Motorized

Additional Specs:

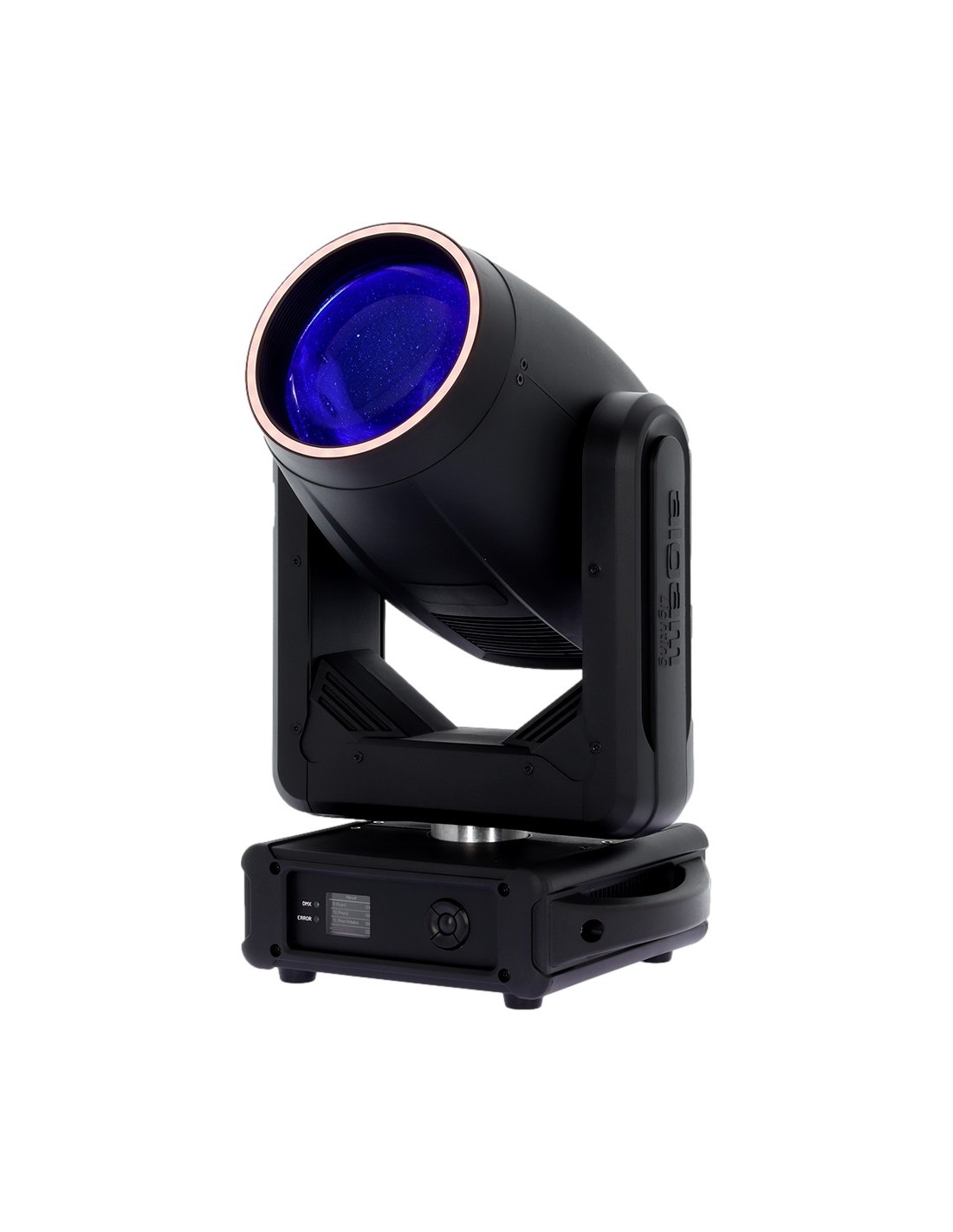

• Light Sources: 200W white LED + ring of 31 RGB SMD LEDs

• Brightness: 42,000 Lux @5 meters

• Beam Angle: 4° to 35°

• Movements: PAN up to 540° / TILT up to 270°

• Fixed Gobo Wheel: 9 + white

• Rotating Gobo Wheel: 7

• Color Wheel: 9 colors + white

• Prism: 2 Rotating Prisms

• Frost: Motorized

• Focus: Motorized 0-100% linear

• Dimmer: 0-100% linear curve

• Modes: Automatic, Musical, DMX, Master/Slave

• DMX Channels: 16 or 20

• DMX Inputs/Outputs: 3-pin and 5-pin XLR

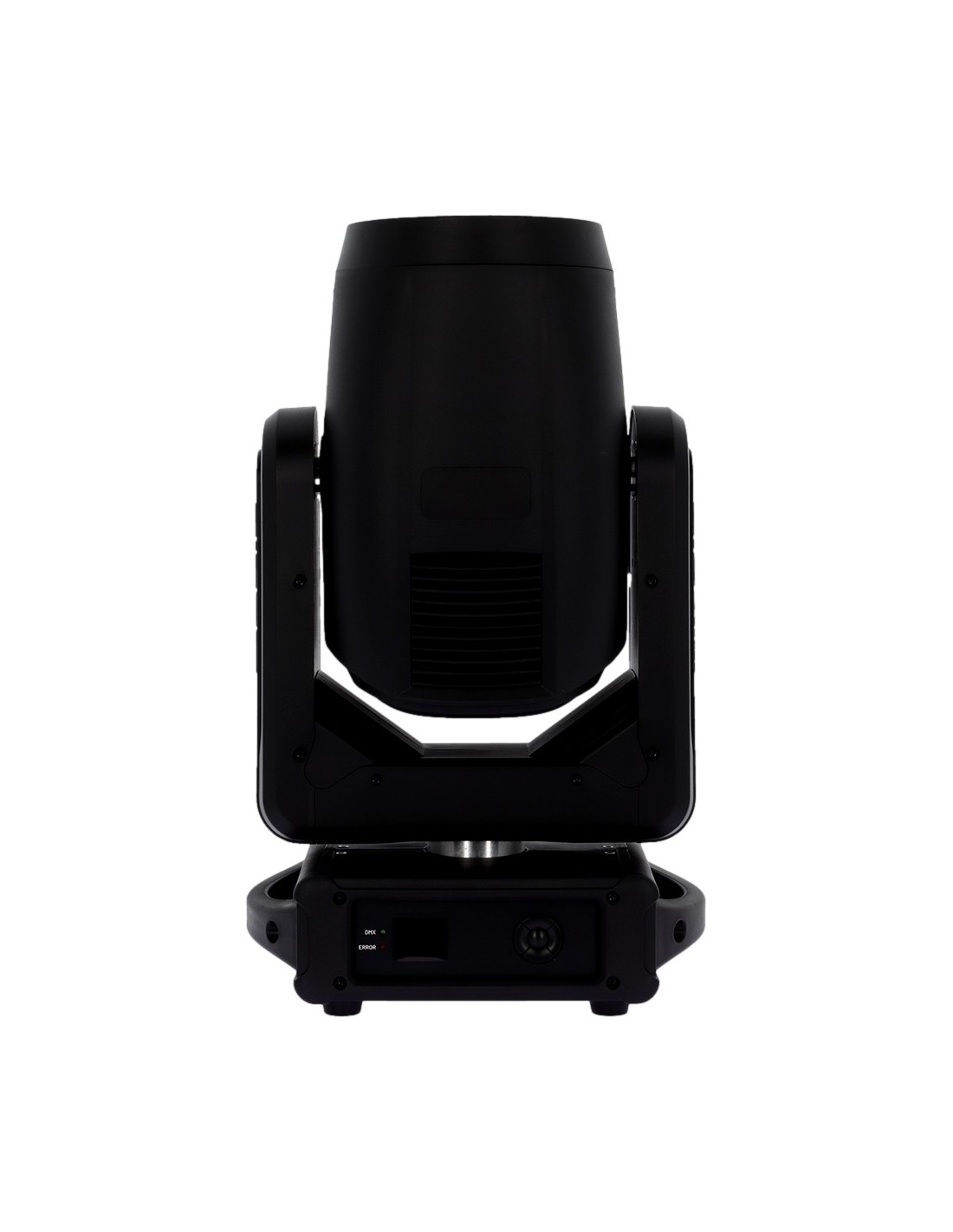

• Display: LCD screen with 5 control buttons

• Chassis: Exclusive professional Algam Lighting

• Installation and Mounting: 2 OMEGA brackets with 1/4 turn

• Power Connector: PowerCon T1 In/Out

• USB Charging Port: To power an external device, such as a wireless DMX receiver

• Compatible RDM

• Power Supply Voltage: 100-240V 50/60 Hz

• Power Consumption: 350 W

• Weight and Dimensions: 13.02 kg, 330 x 250 x 580 mm

• IP Rating: IP20 (indoor use)

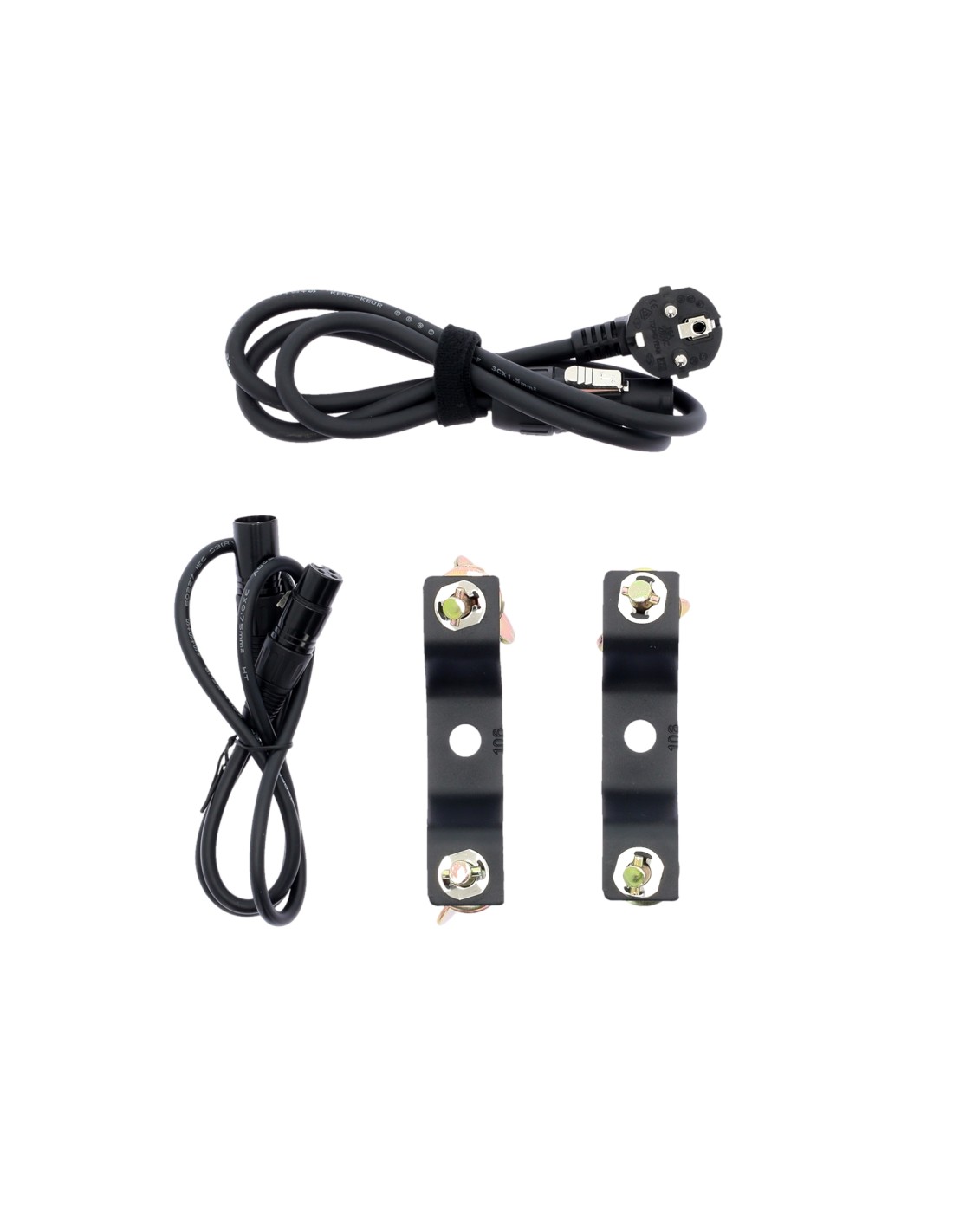

• Delivered With: DMX and power cables, 2 OMEGA brackets
