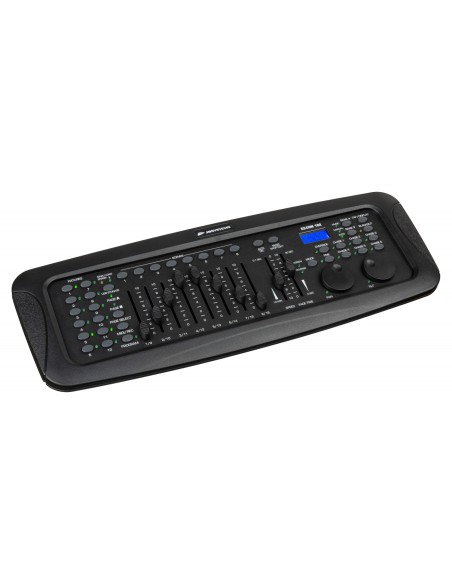

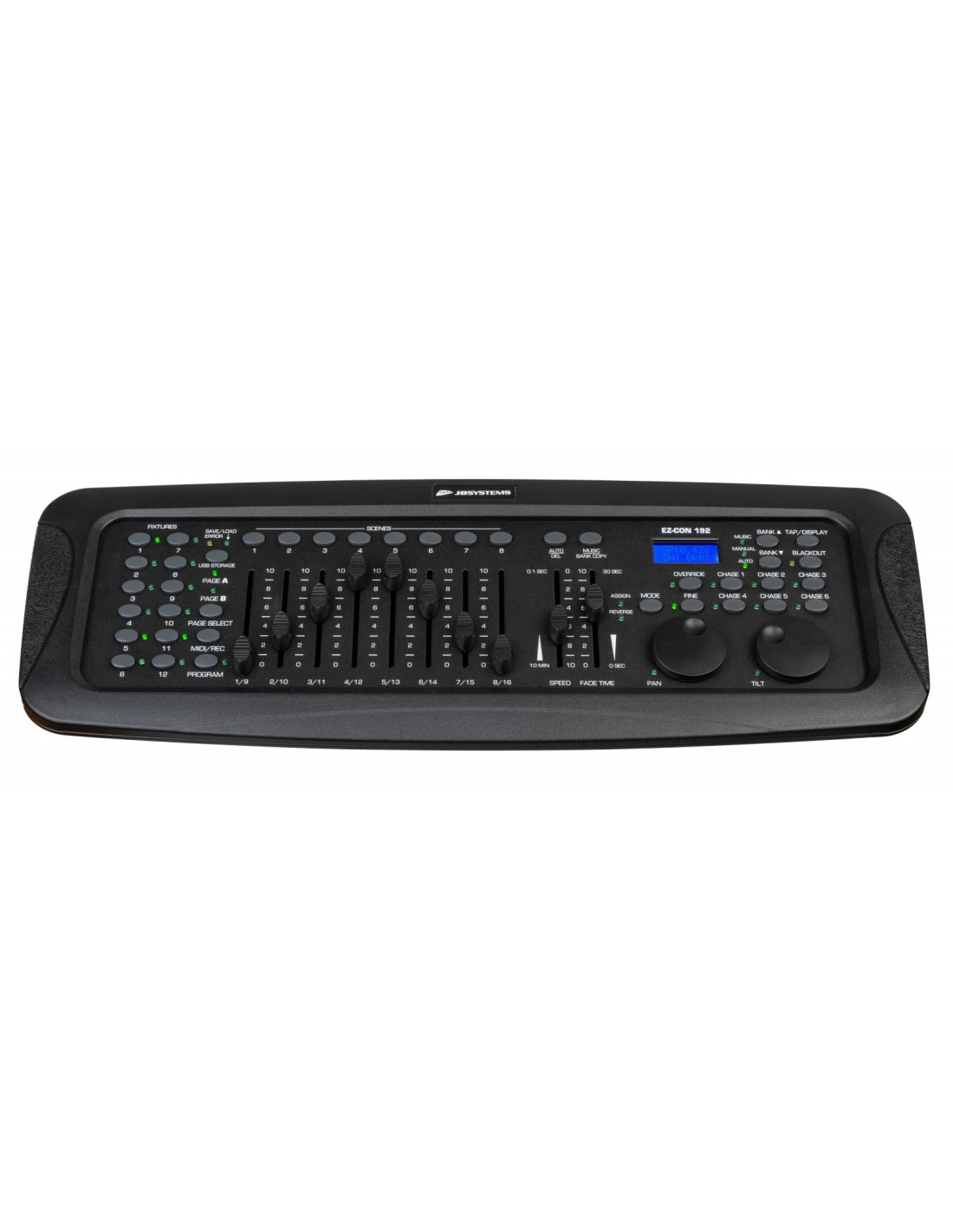

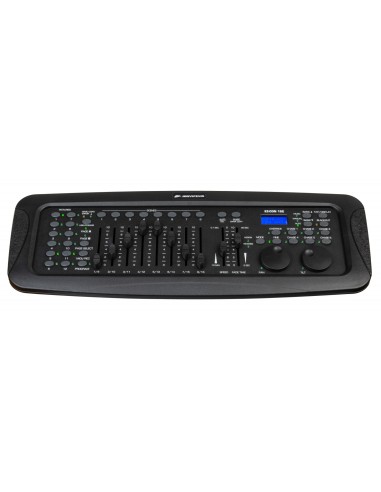

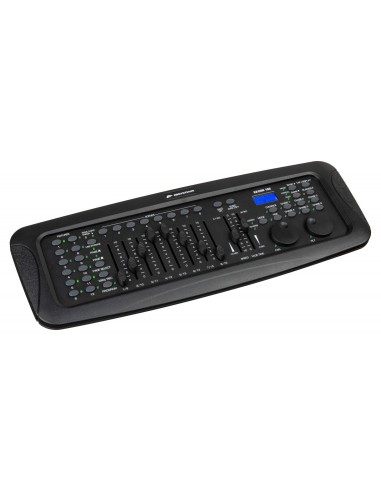

JB System - EZ-CON 192 - DMX Controller

Key Features:

• Versatile DMX controller for mobile DJs, pubs, and small nightclubs.

• 192 DMX channels.

• Up to 12 fixtures with 16 channels each, individually controllable.

• 20 banks of 8 programmable scenes (total = 160 scenes).

• 6 programmable chases of 160 scenes.

• 8 Sliders for manual channel control.

• 2 Wheels for easy Pan and Tilt navigation.

• USB A port for saving programs to a USB drive.

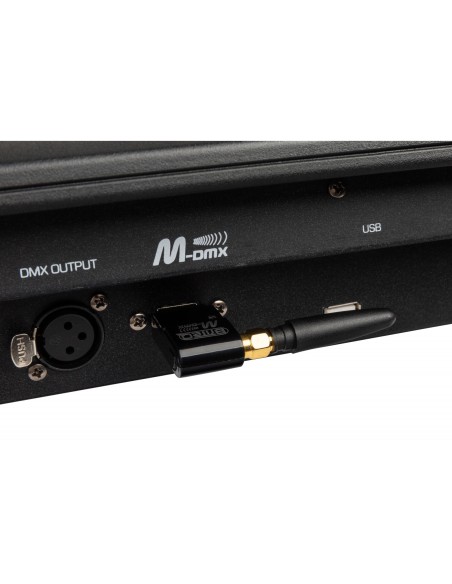

• USB A port (M-DMX) for wireless DMX dongle.

• No external adapter needed thanks to the built-in power supply!

• Automatic mode programming controlled by speed and fade time sliders.

• Fade time/fade signal.

• Reversible DMX channels allow the device to react in opposition to others in a chase.

• 8-channel or 16-channel mode.

• Blackout button to disable all DMX output.

• The "Manual Override" button allows you to take control of any device "on the fly."

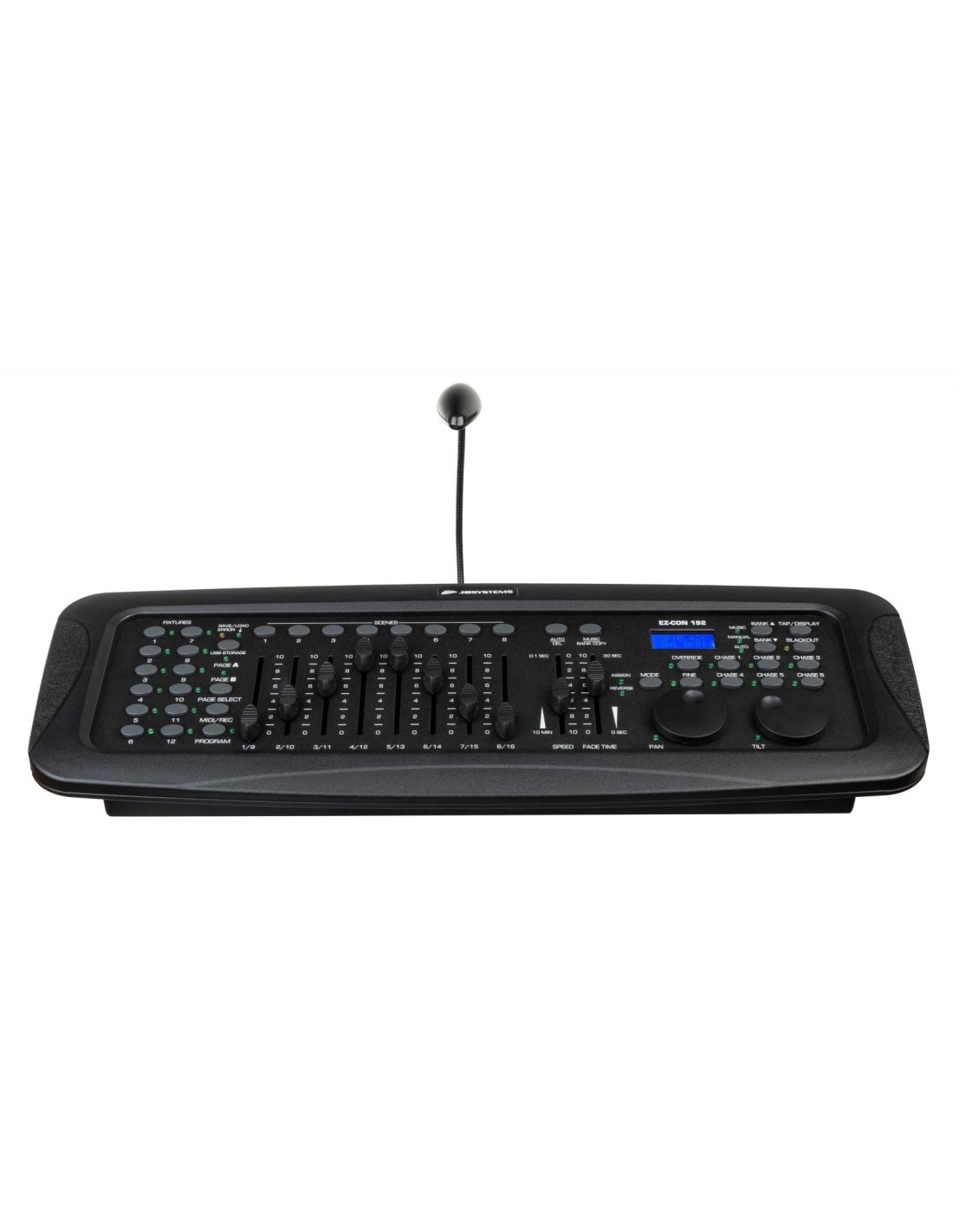

• Built-in microphone for synchronizing chases with music.

• MIDI control for banks, chases, and blackout.

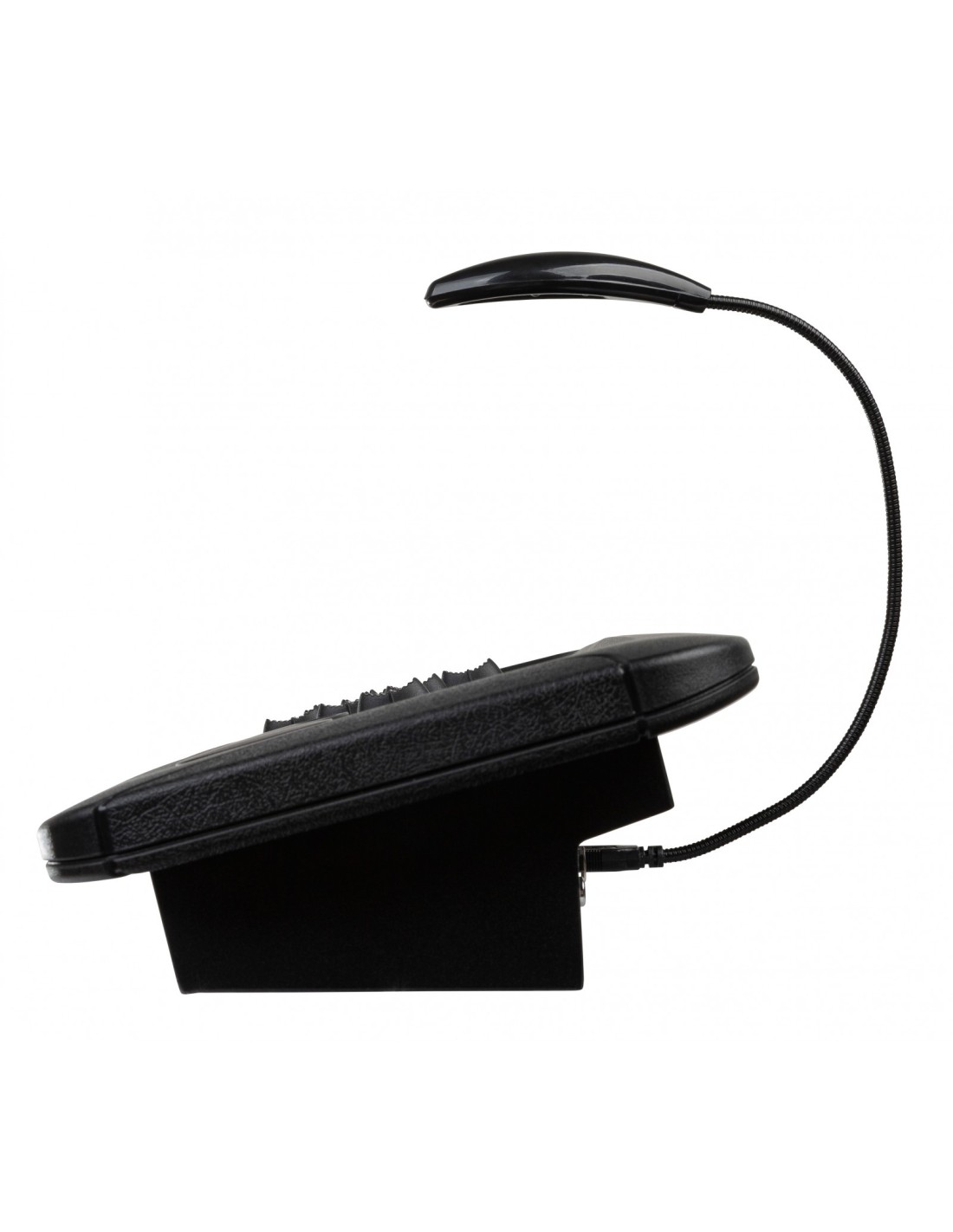

• White light flexible with USB connector included!

General Specifications:

• Dimensions (cm): 52.7 x 19.2 x 8.7

• Weight (kg): 2.65

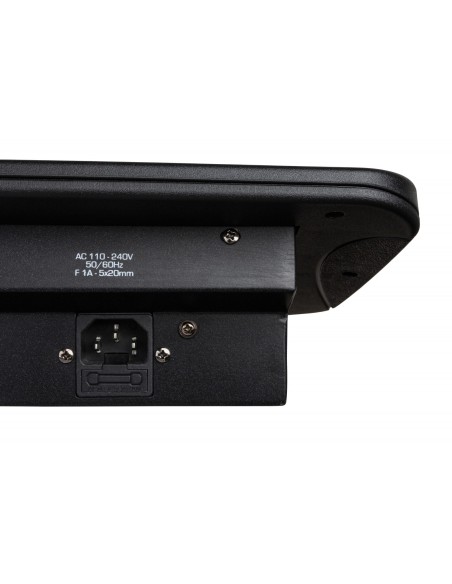

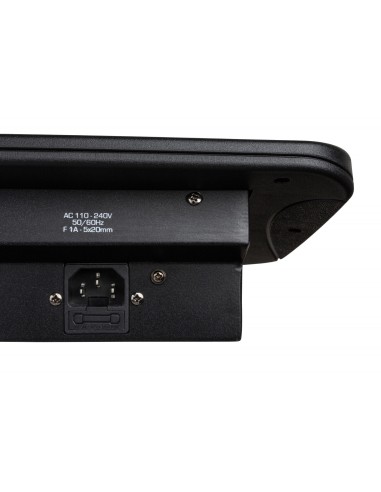

• Power Supply: AC 100 - 240V, 50/60Hz

• Energy Label: No

• Color: Black

• Screen: LCD

• Mounting: 19" rack mountable

• RU: 3U

• IP Rating: Indoor

Control:

• Protocols: DMX, Wireless DMX

• Programmable: Yes

• Software Update: No

• Max DMX Channels: 192

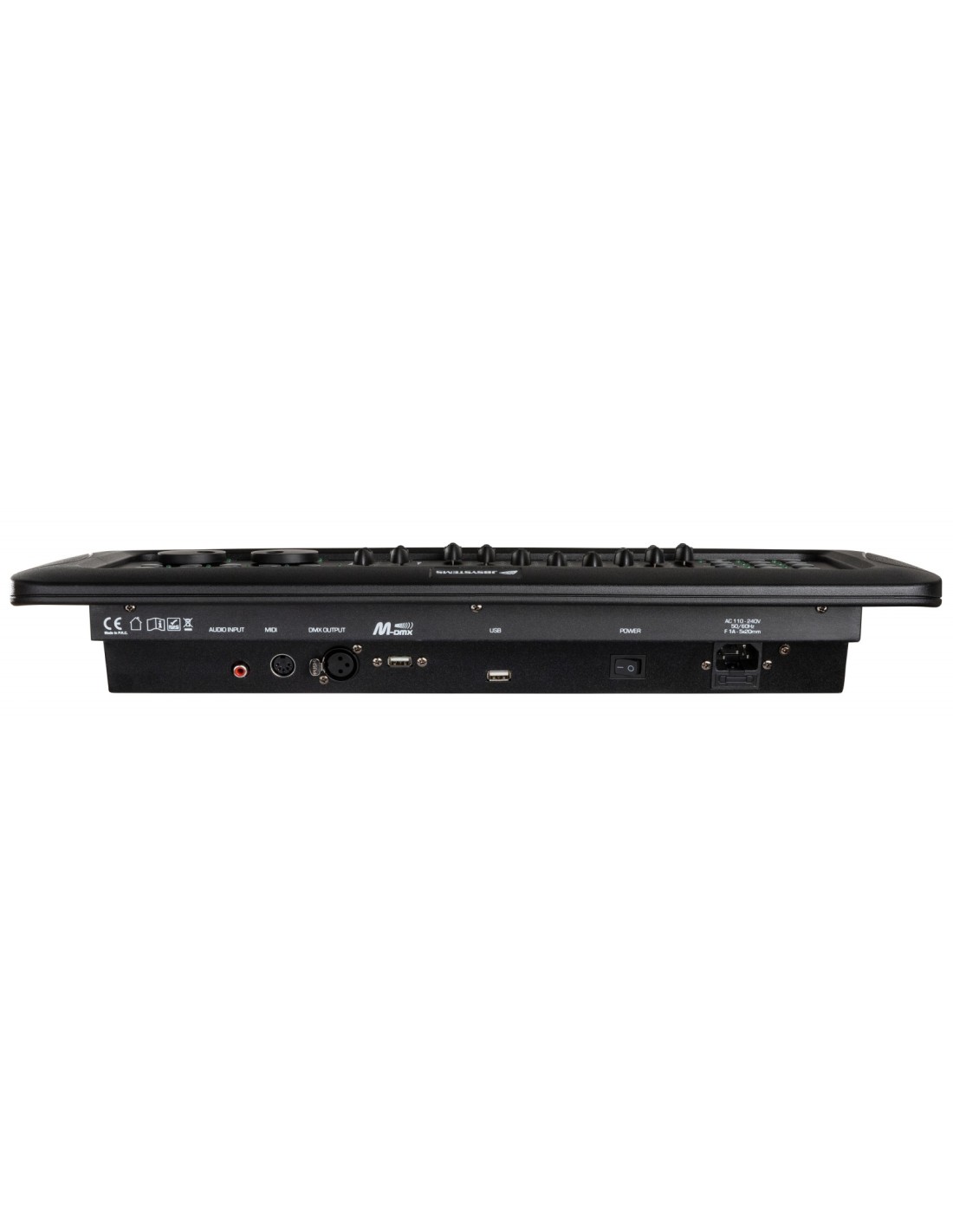

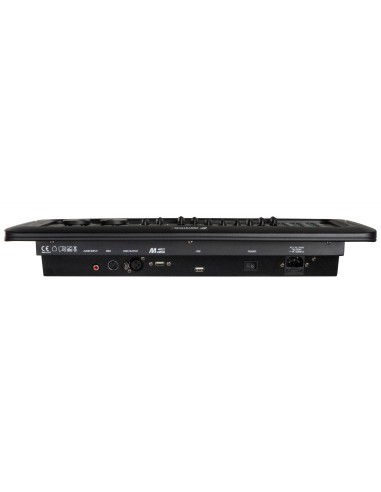

Connection:

• Input: RCA, MIDI, IEC

• Output: 3 pin XLR, optional wireless DMX, USB
